VINYL BOX SET PACKAGING TEMPLATE
Collector Edition | FLUBY KIT 001
A ready-to-use packaging kit for vinyl collector editions, limited releases and premium music projects.
A COMPLETE STARTING POINT FOR A VINYL BOX SET
Creating a collector vinyl box set takes more than artwork. The packaging structure, dimensions, dielines and technical files all need to work together before production can begin.
VINYL BOX KIT 001 gives artists, record labels, graphic designers and creative studios a ready-made structural foundation for a premium vinyl box set.
Instead of starting the packaging structure from scratch, you can focus on your artwork, creative direction and customization.
Designed by FLUBY — independent packaging designer with an industrial and creative background.
PACKAGING ENGINEERING & STRUCTURAL SPECIFICATIONS
Every structural element has been engineered with real-world manufacturing constraints, folding tolerances, and material thicknesses in mind.

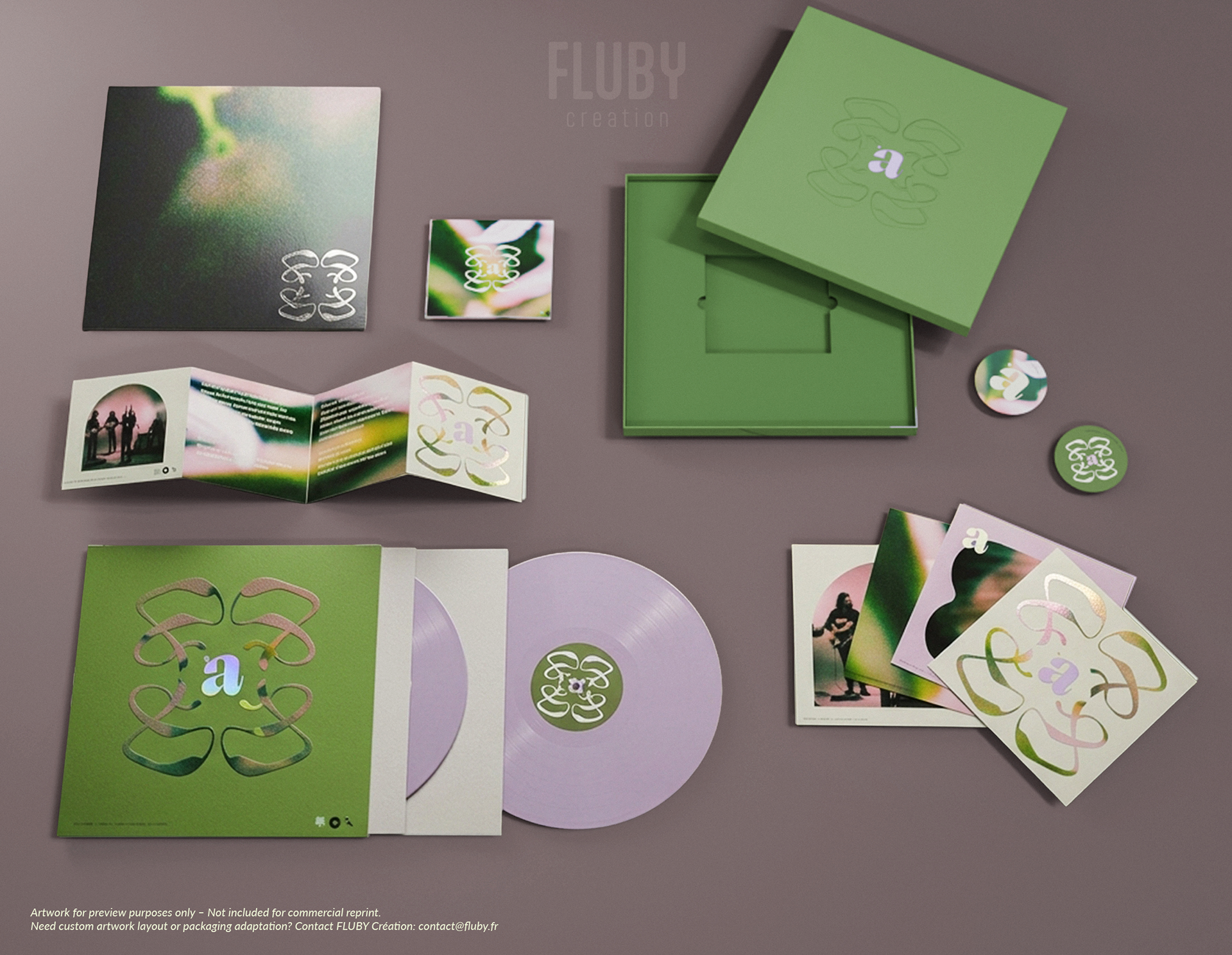

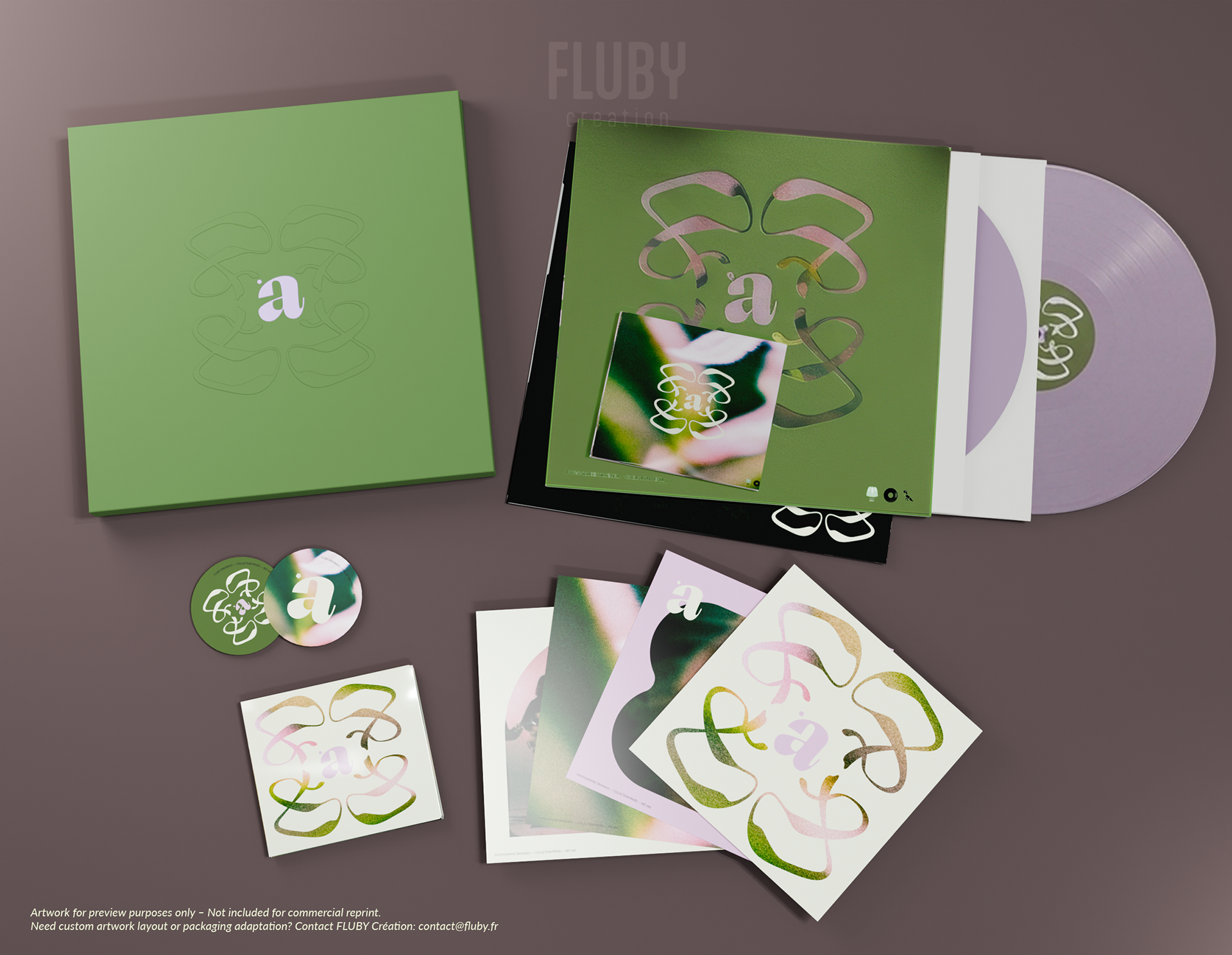

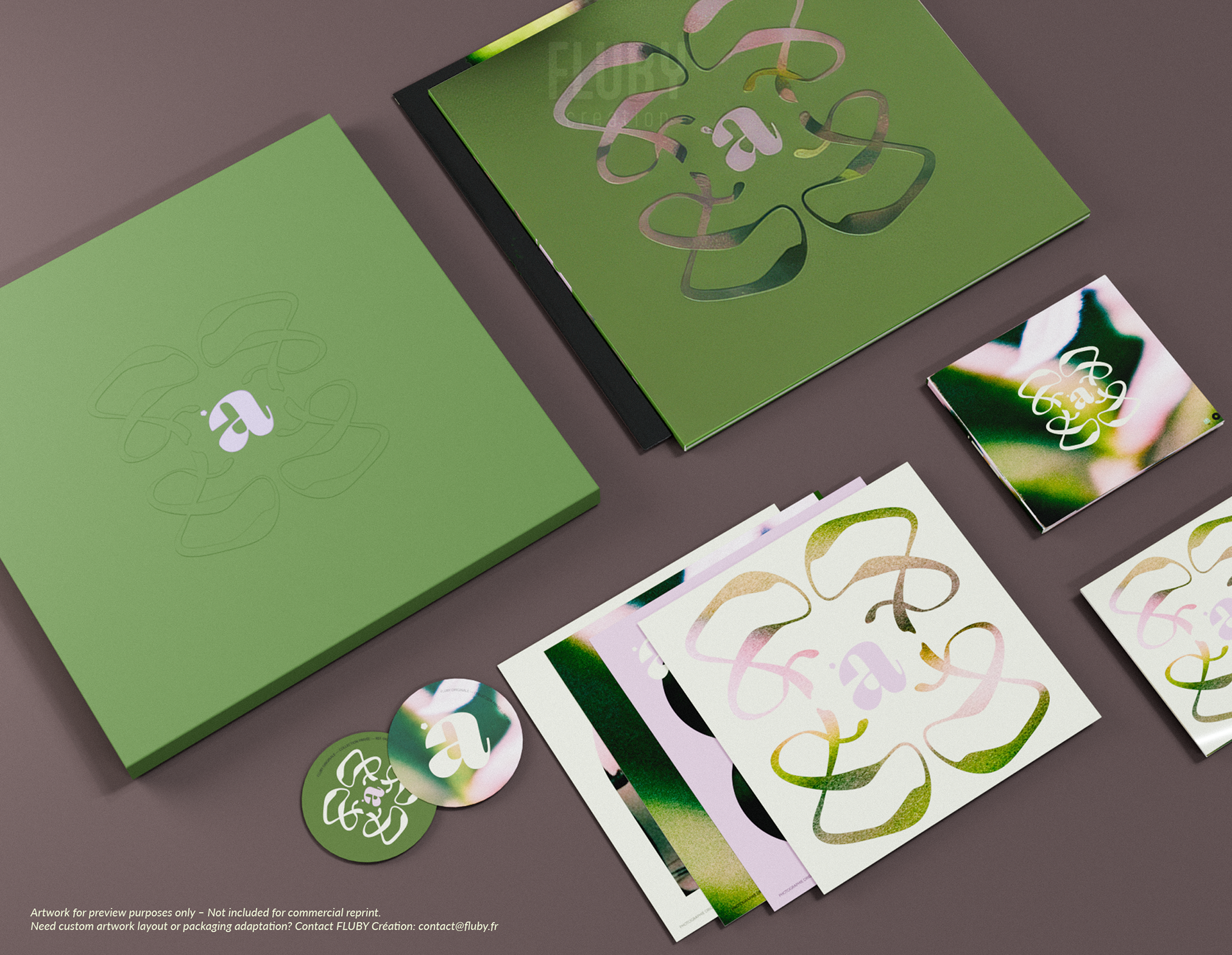

📦What's included in this turnkey kit:

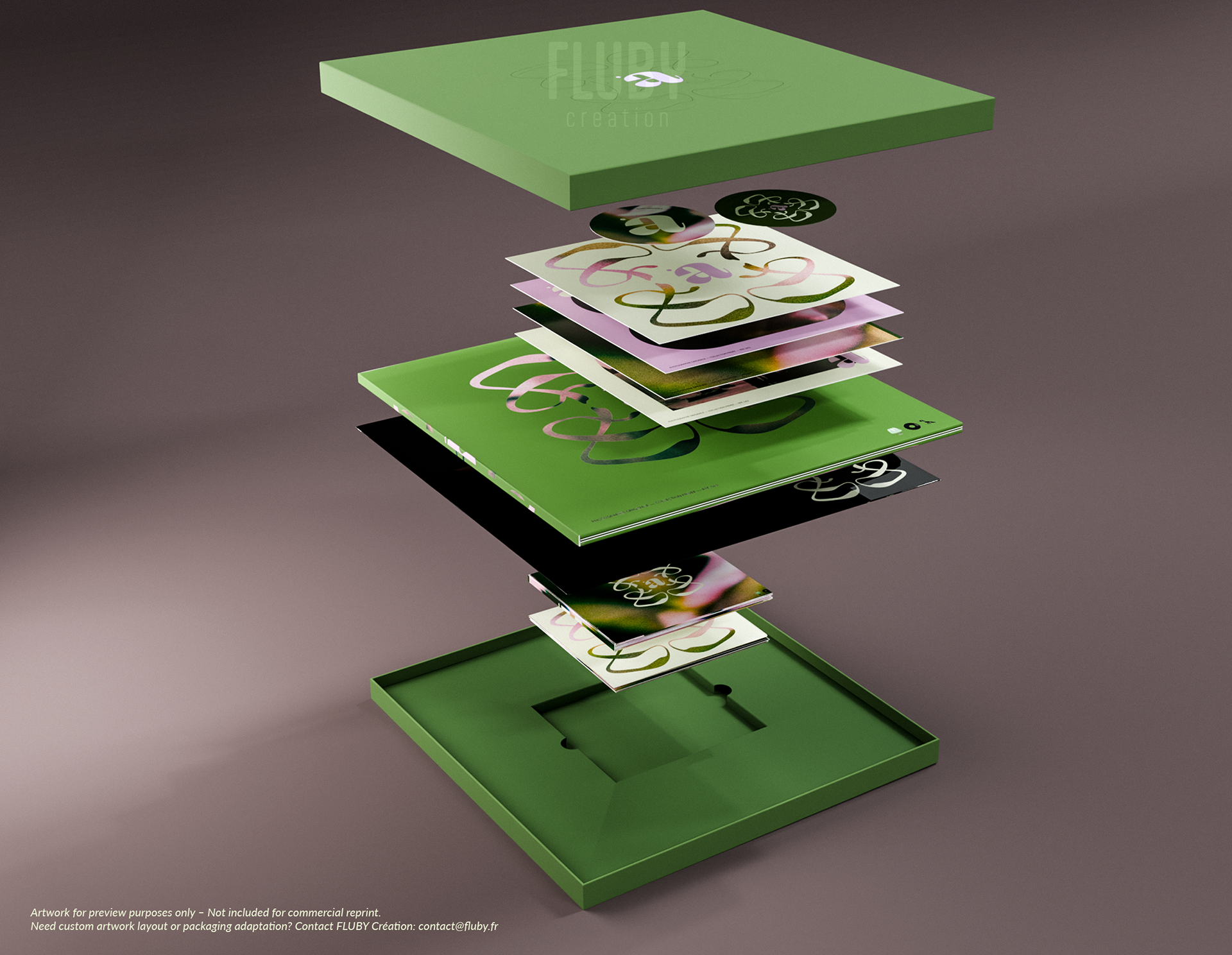

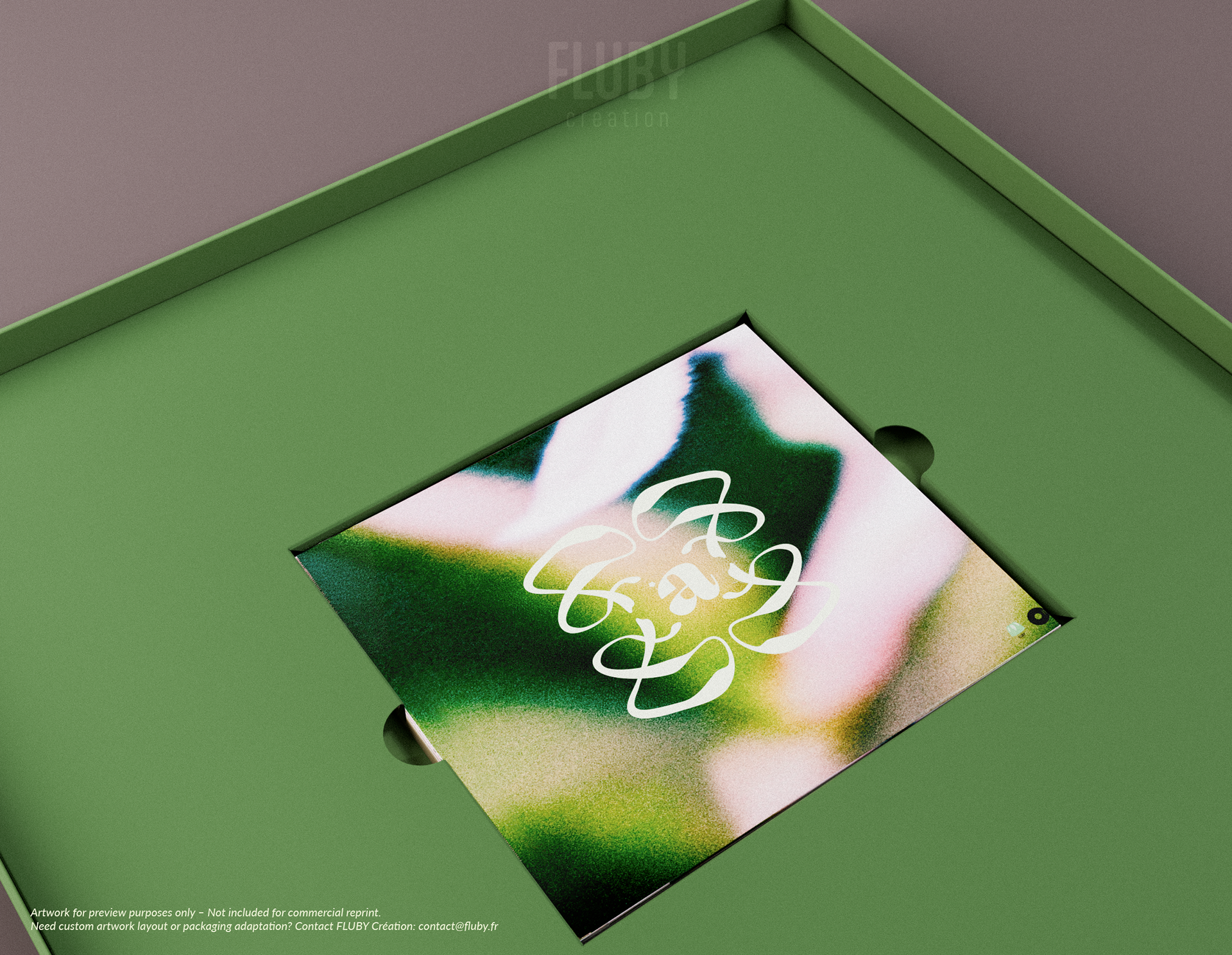

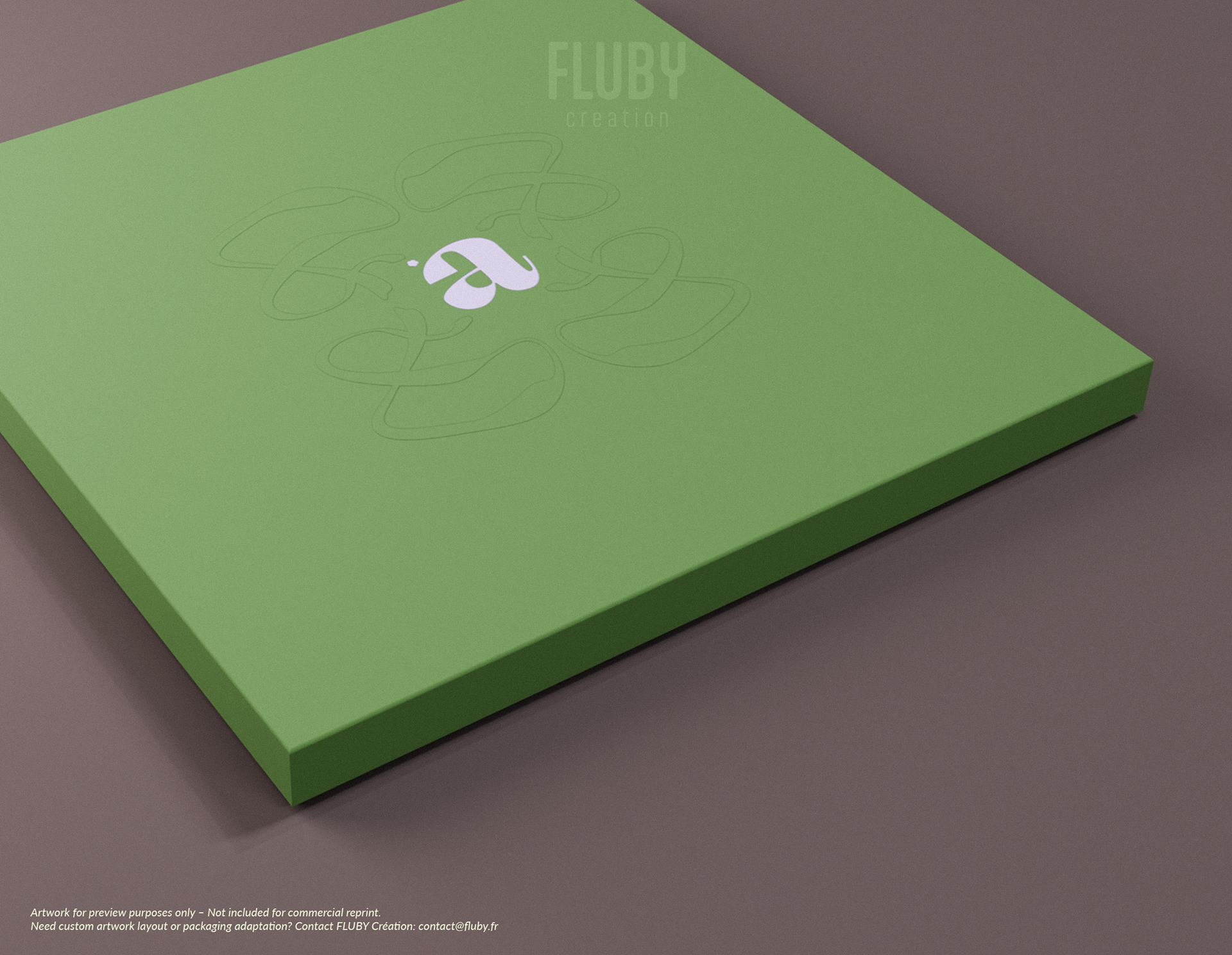

* Rigid Clamshell Box (Boîte cloche) : Outer box with bespoke internal tray insert.
* 2-Panel Gatefold Jacket : Structural sleeve designed for 2x 12-inch vinyl records.
* CD Digipack Insert Tray : Custom holder for a 2-panel / 2-CD digipack.
* Accordion CD Booklet : Multi-panel folded booklet format.
* Collector Inserts : 4x photo art prints (200 x 200 mm) + 2x round stickers (85 mm).
* Folded Poster : Classic cross-fold poster insert.
🛠 Technical Files Provided in the Kit:

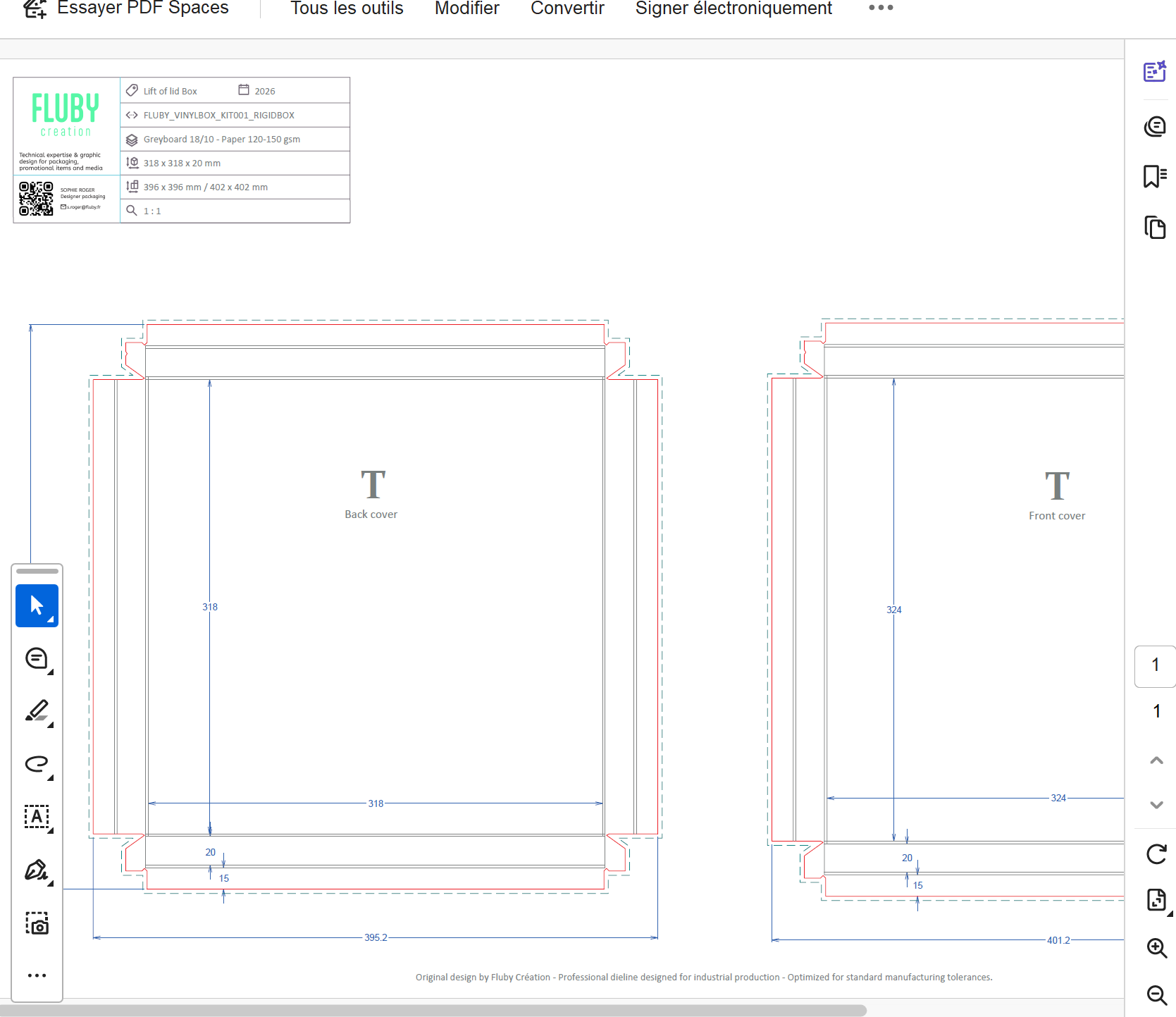

* 2D Vector CAD Dielines: DXF, EPS, PDF (Includes bleeds, fold lines, gluing tabs, and technical tolerances).

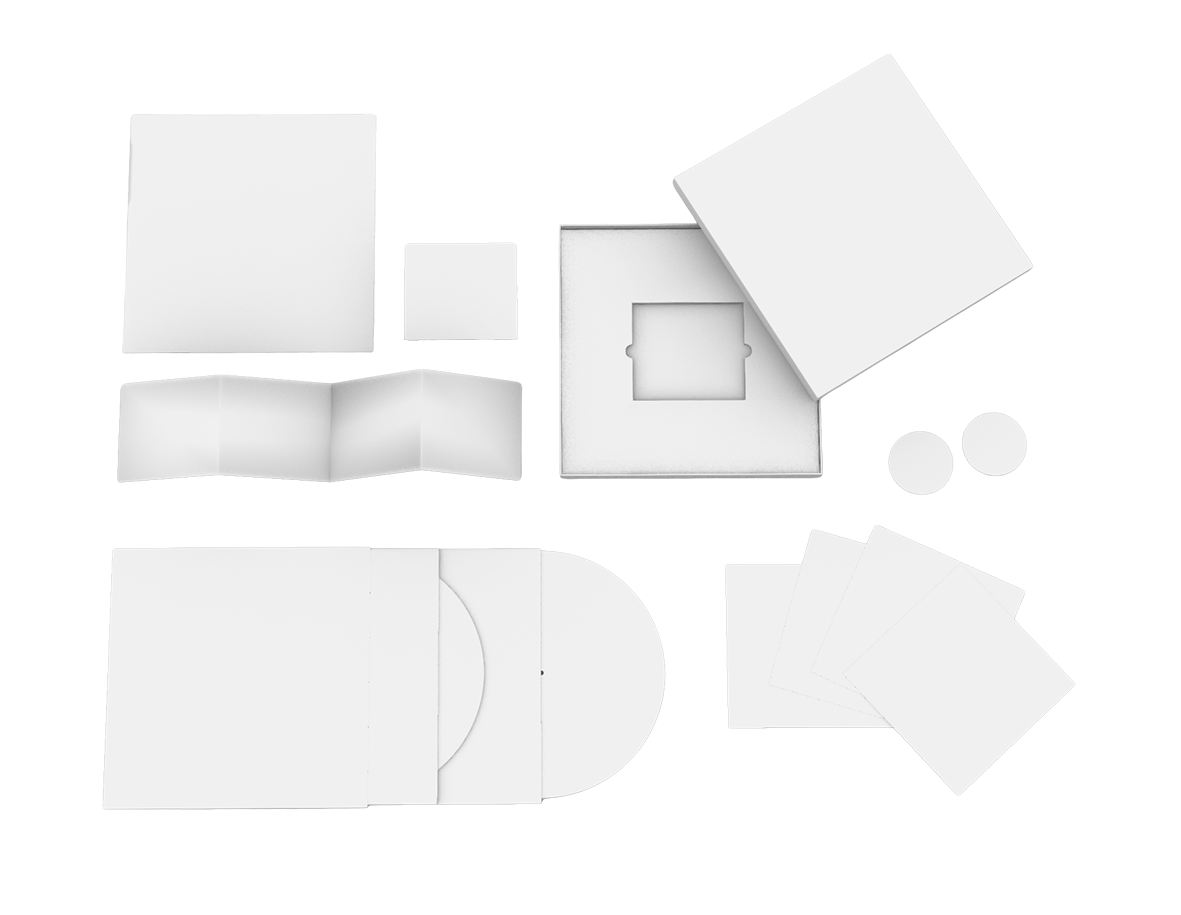

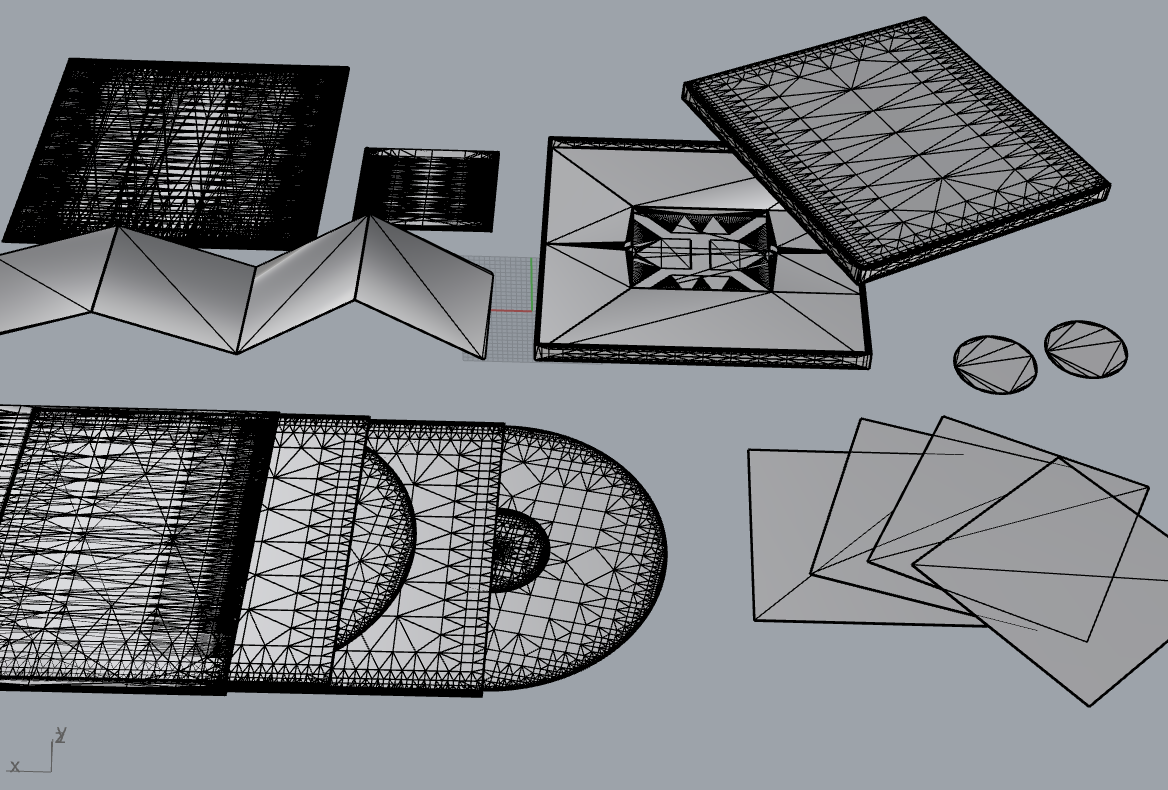

* 3D Visualization Files: Full assembly scene files in FBX & OBJ formats + High-res neutral white 3D scenes for custom mockups.
3 WAYS TO WORK TOGETHER WITH FLUBY CRÉATION
🛒 01. Ready-to-Use Packaging Kits (Gumroad) Download production-ready CAD dielines (PDF, EPS, DXF) and 3D scenes (FBX, OBJ) to apply your own graphic design. 👉 Click here to download Vinyl Box Kit 001 on Gumroad
📐 02. Custom Structural Packaging Engineering Need a unique box shape, custom tray insert, or complex folding cardboard structure engineered for your specific product dimensions?
🎨 03. Full Custom Graphic & Structural Design Looking for a complete visual identity and artwork for your album or luxury limited edition? Full visual direction, custom graphic artwork, hot-foil stamping design, embossing details, and photorealistic 3D rendering tailored to your project.
✉️ Contact for custom quotes & projects: contact@fluby.fr
🌐 Website : www.fluby.fr
⚠️ IMPORTANT / GRAPHIC DESIGN DISCLAIMER
The visual artwork, colors, and graphics presented on this packaging are a personal design creation by Fluby Création. They are NOT included in the downloadable template kit.
The downloadable kit contains 100% structural packaging assets (vector CAD dielines + 3D assembly models).
